Compact Ejector - 0.7 mm, Normally Open, Switches to Plus

This compact ejector from J.

Schmalz GmbH generates vacuum for handling airtight and slightly porous workpieces in automated manufacturing systems.

The unit features a 0.7 mm nozzle and switches to plus with normally open control, providing a maximum suction rate of 16 l/min.

Weighing 0.195 kg, the ejector is designed for space-constrained installations.

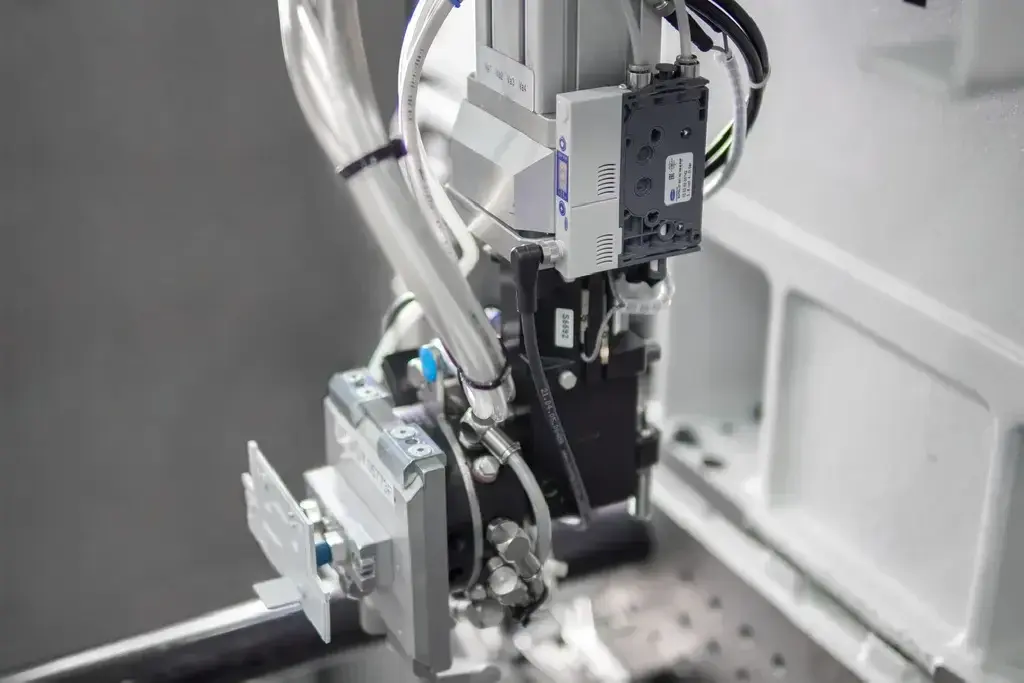

The ejector suits robotic handling applications, linear axis systems, and pick-and-place operations where short cycle times are required.

It supports fully automated small parts handling where highly dynamic gripping is necessary.

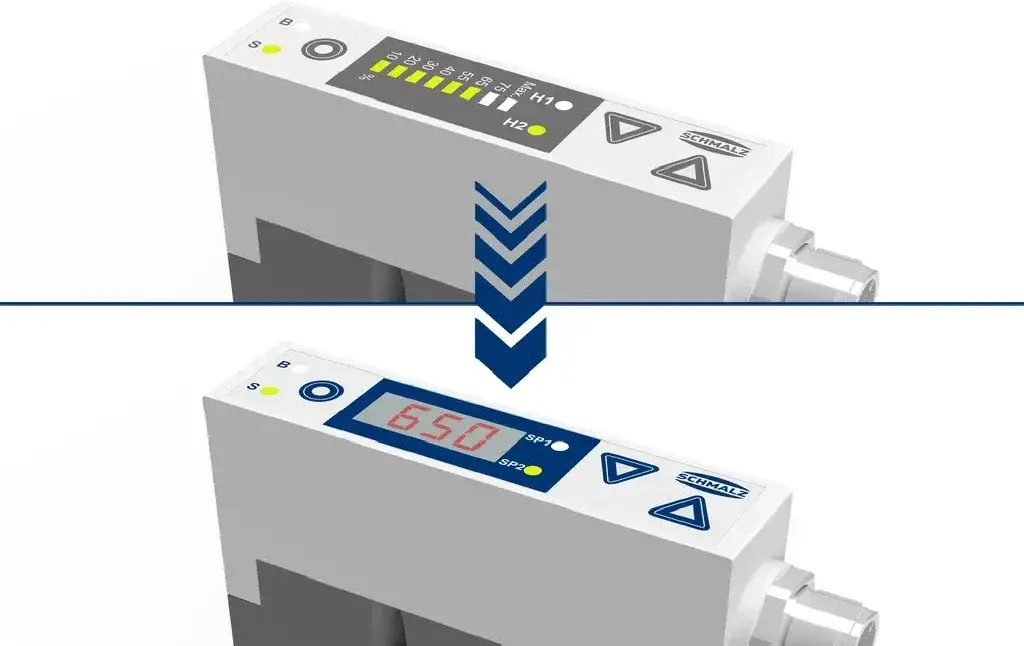

The compact form factor allows integration into systems with limited mounting space while maintaining vacuum generation and monitoring capabilities.
