Schmalz

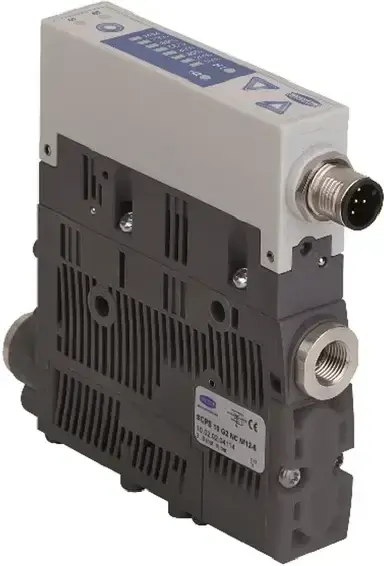

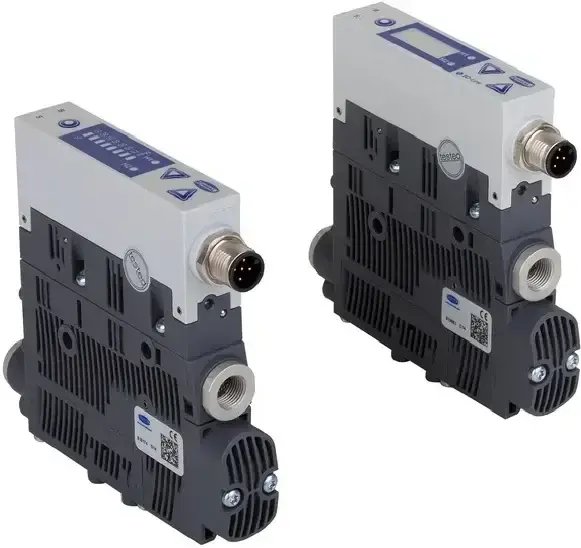

Compact vacuum ejector for automated handling of airtight and slightly porous workpieces. Delivers 46 l/min flow rate with normally closed control and PNP switching output. Ideal for pick-and-place, robotic handling, and space-constrained applications.
Schmalz Compact Vacuum Ejector, model number PNP, is a pneumatic ejector designed for space-saving robotic handling, pick-and-place, and small parts automation.
Manufactured by J. Schmalz, the Compact Vacuum Ejector is trusted across industrial pneumatic systems for reliable vacuum generation and monitoring.
Compared to larger vacuum ejectors, the 0.2 kg PNP model offers reduced installation footprint, quick response times, and efficient handling for applications with short cycle times.
The Schmalz Compact Vacuum Ejector suits robotic solutions that require dynamic gripping, rapid vacuum switching, and compact design for pneumatic automation.
The Schmalz Compact Vacuum Ejector generates 46 l/min vacuum flow in a 0.2 kg form factor, making it suited for tight robotic cells and pick-and-place modules where space and weight are critical. Full-size vacuum pumps are heavier and require more installation area, but may deliver higher flow for large-footprint systems.
