Compact pneumatic ejector with 65.5 l/min suction capacity and integrated air-saving control. Features 1.5 mm nozzle, normally closed solenoid valve, and PNP switching output for direct integration into small-footprint vacuum handling and pick-and-place systems.

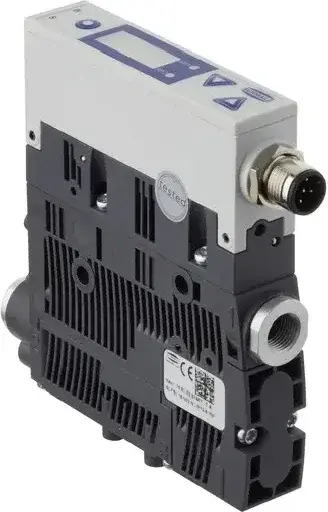

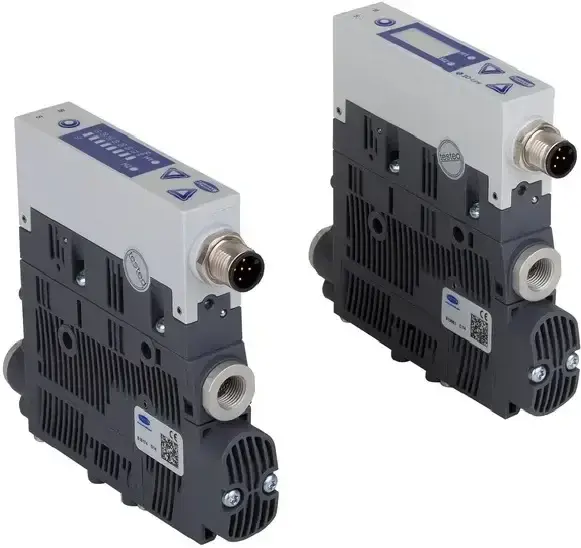

The Schmalz Vacuum Ejector, model 10.02.02.04116, is a compact pneumatic ejector designed for vacuum generation and monitoring in space-limited industrial automation environments.
Manufactured by J. Schmalz GmbH, the 10.02.02.04116 belongs to the family of Schmalz compact ejectors. Integration is supported across automated handling solutions requiring compact pneumatic ejector technology.

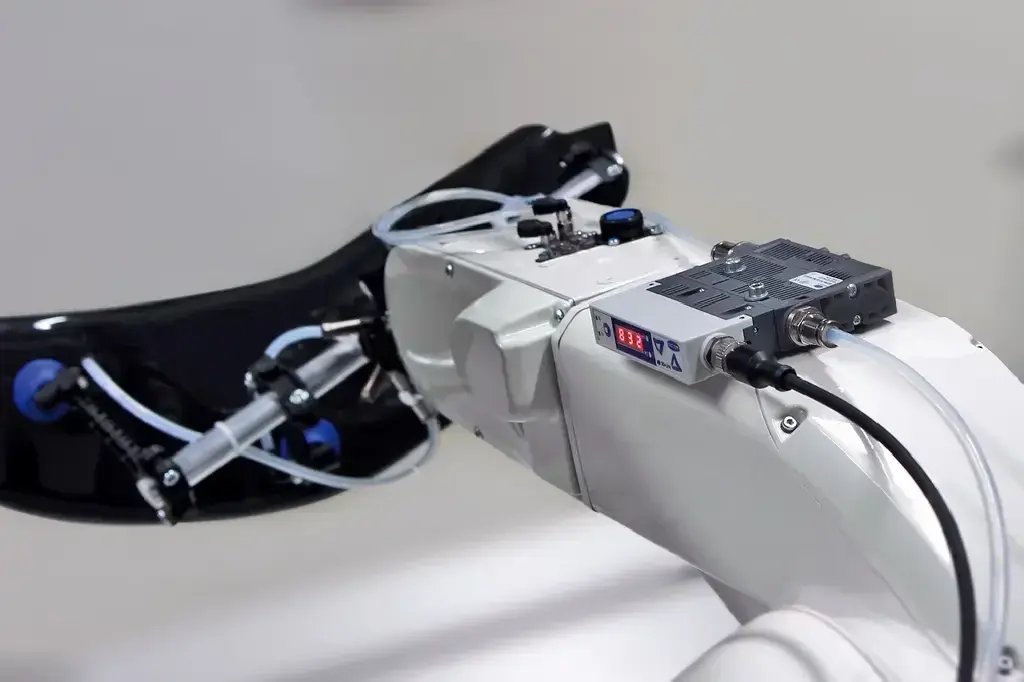

Engineered for dynamic pick-and-place operations, the Schmalz Vacuum Ejector handles airtight and slightly porous workpieces. Typical use cases include robotic handling systems, linear axis automation, and fully automated small parts handling where mounting space is minimal but precision vacuum control is required.
The integrated air-saving control and narrow form factor provide significant energy efficiency over standard vacuum ejectors. This makes the ejector well suited for demanding environments focused on reducing compressed air consumption and achieving short cycle times.
The Schmalz Vacuum Ejector is a compact pneumatic solution for applications where space and energy efficiency are critical. Choose this over electric pumps when your automation cell has limited mounting room, relies on existing compressed air infrastructure, or needs minimal power draw.
