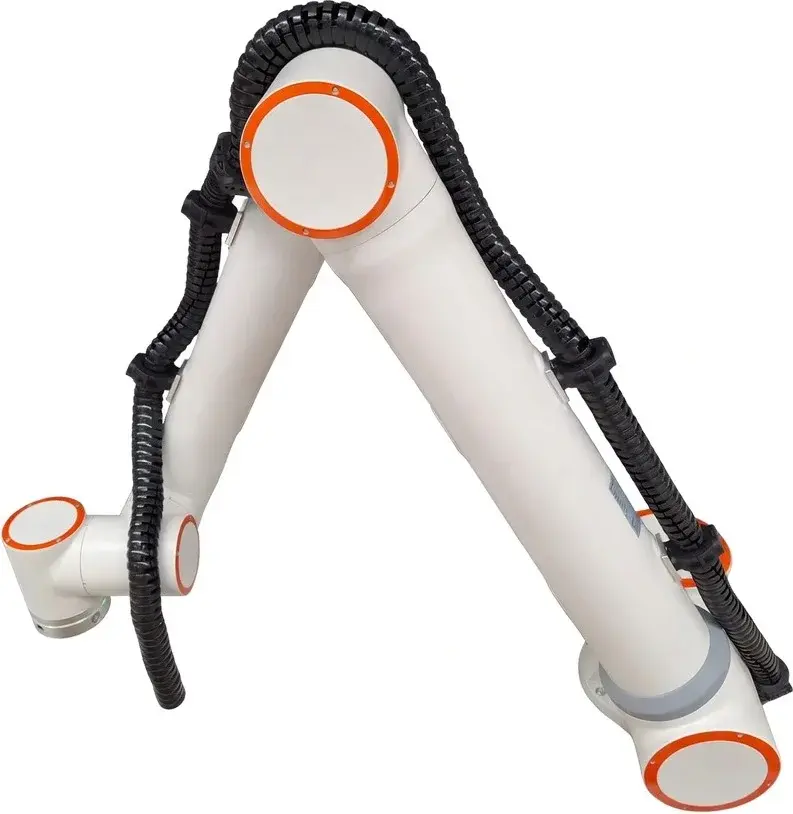

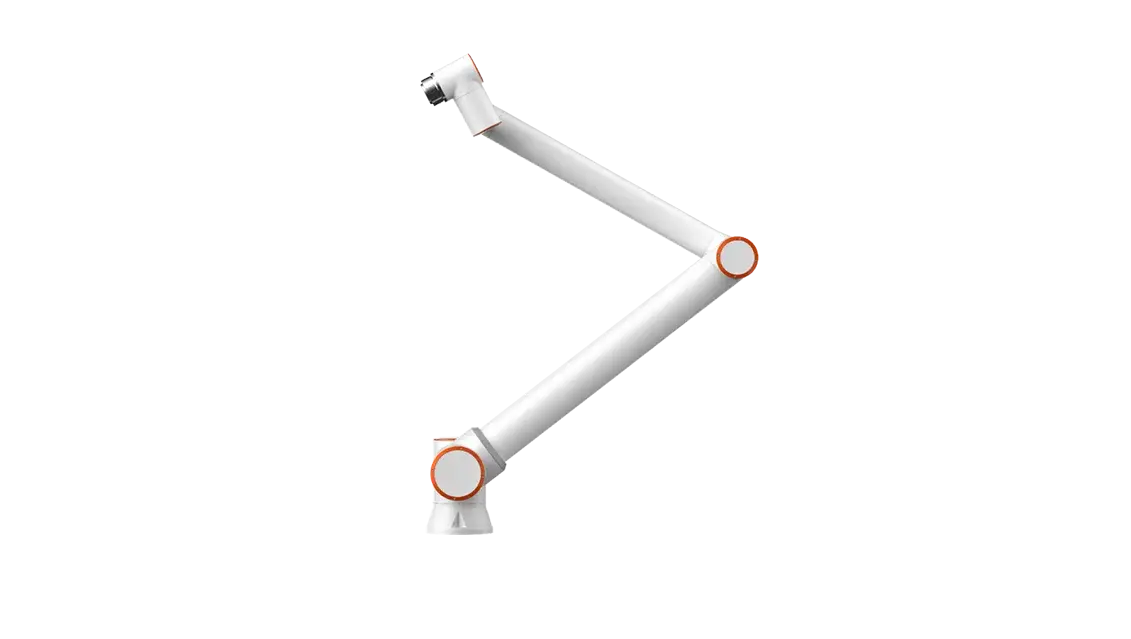

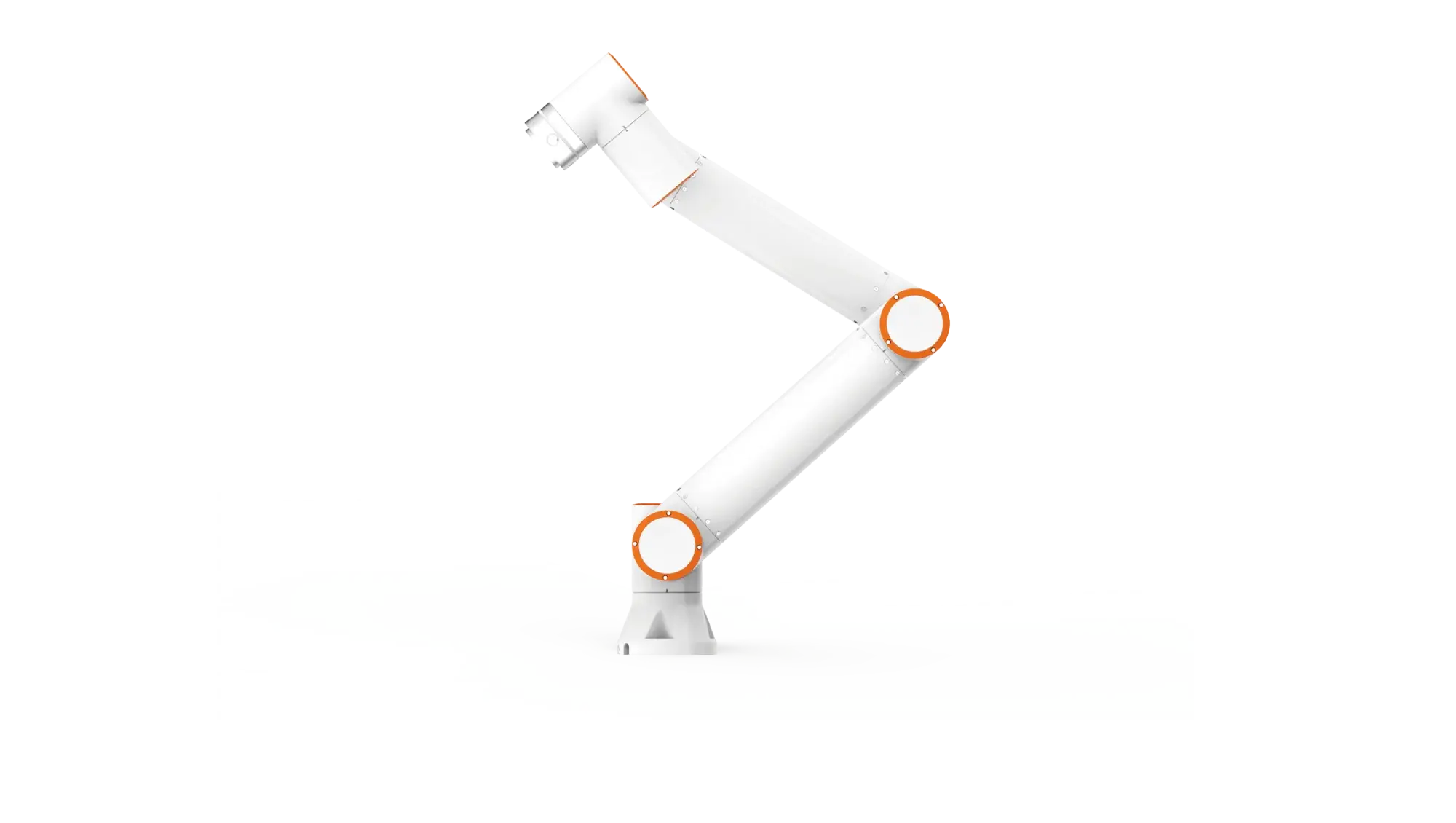

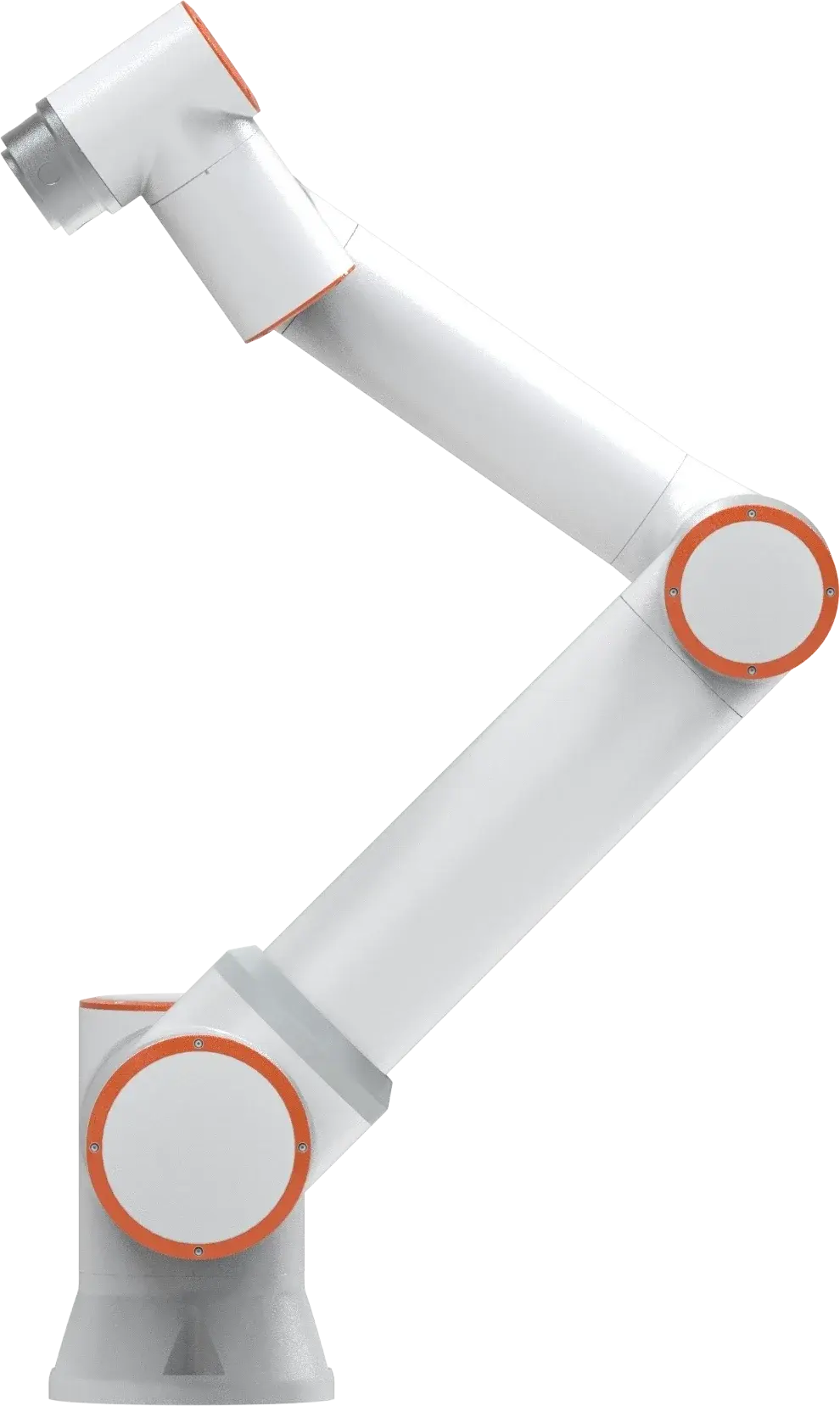

FAIRINO FR16 collaborative robot arm, 16 kg payload
FAIRINO
Six-axis collaborative robot arm with 16 kg payload, 1034 mm reach, and ±0.02 mm repeatability. IP66-rated for assembly, material handling, and machine tending in industrial environments.
The FAIRINO FR16 is a six-axis collaborative robot arm designed for industrial automation applications requiring a 16 kg payload and 1034 mm working reach.
With ±0.02 mm movement repeatability and ±0.03 mm pose repeatability per ISO 9283, this cobot delivers the precision needed for demanding assembly, material handling, and machine tending operations.
All axes operate at speeds up to ±180°/s, with typical tool center point speed of 1 m/s.
The FR16 features IP66-rated protection for reliable performance in challenging shop floor environments.
The compact 190 mm footprint and 40 kg weight facilitate integration into existing production layouts.
Control is managed through a 10.1 inch teach pendant or mobile terminal web application, with graphical programming and drag teaching functionality to simplify setup and integration.
The arm operates within 0-45°C temperature range and up to 90% relative humidity (non-condensing).
Six rotating joints provide the flexibility to navigate complex tool paths and workspace constraints common in automated manufacturing cells.
