Air Vise Table Vise, 96mm Zero Point, 6 inch

Air Vise Table Vise, 96mm Zero Point, 6 inch is an industrial grade pneumatic vise for CNC automation, ideal for high-precision 6 inch workholding and compatible with 96mm zero point base plates.

Headline Features:

• Jaw width: 152 mm (6 inch)
• Throat depth: 23.8 mm (15/16 inch)
• Material: 7075 T-6 hard anodized aluminum

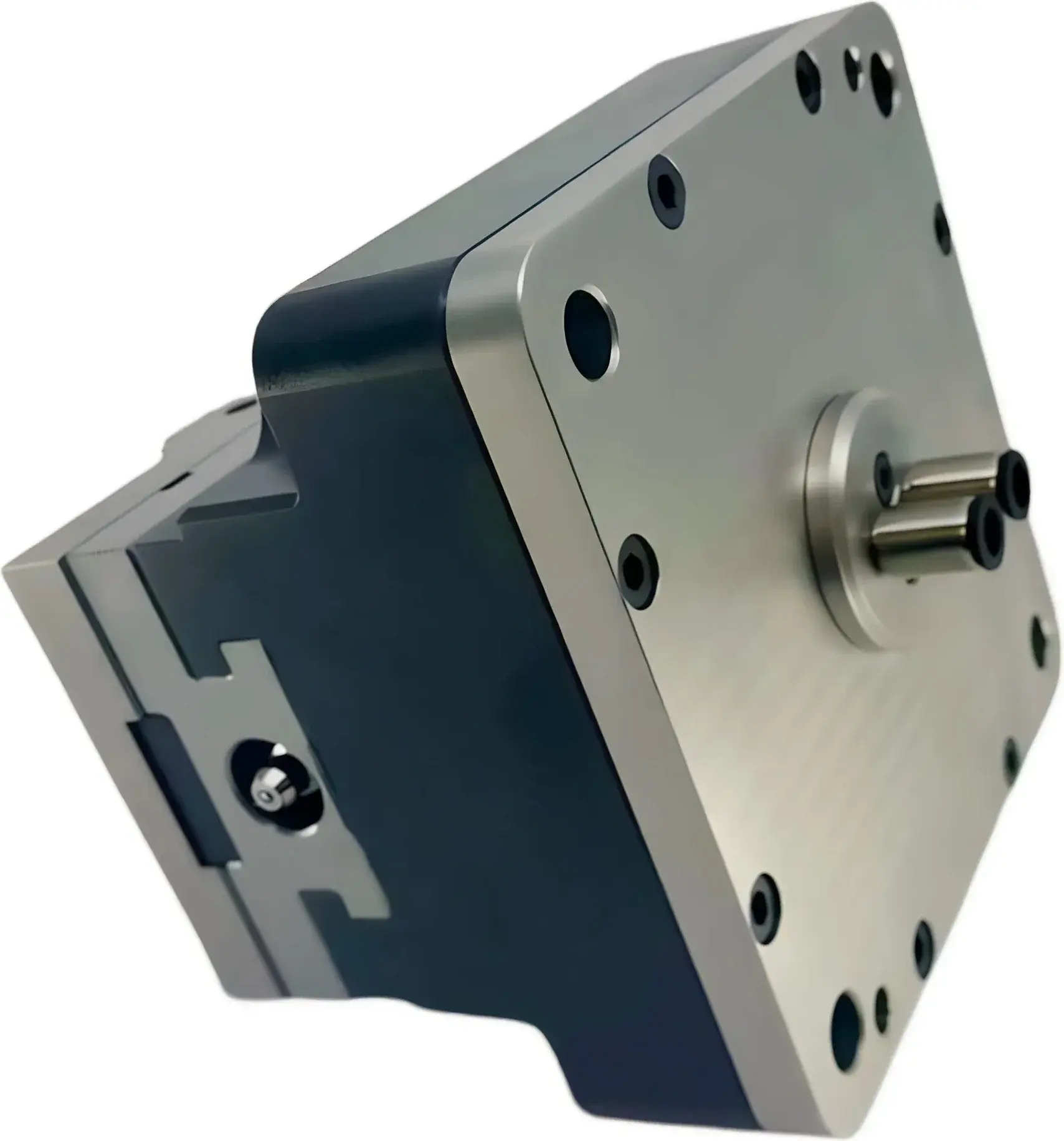

• Base footprint: 152 mm square (5.980 inch)

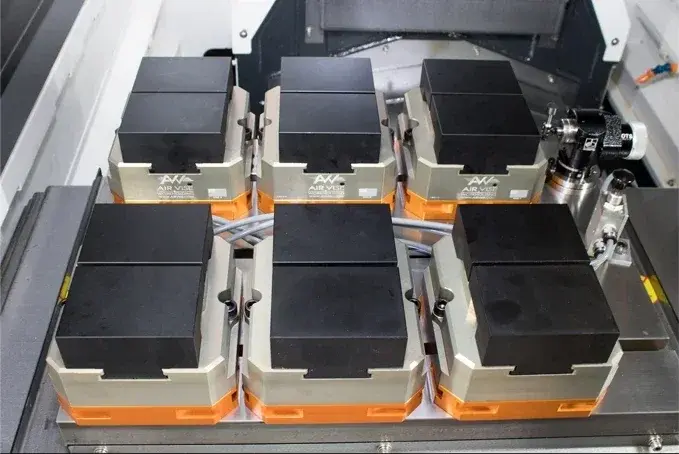

Air Vise Table Vise, 96mm Zero Point, 6 inch is manufactured in the United States and optimized for high-mix CNC machining, offering rapid jaw changeover and robust pneumatic actuation for consistent part clamping on CNC mills, robots, and automated production cells.

Pneumatic Operation Advantages:

• Single-touch pneumatic actuation enables M-code or robot command integration for quick, repeatable workholding.
• Self-centering jaws provide reliable, repeatable clamping force for precision part positioning.
• T-hook mechanism allows tool-free jaw swaps when the jaws are open, minimizing setup time and increasing production efficiency compared to manual vises.
• Chip evacuation channels maintain clean operation under high-mix and high-volume CNC workflows.

Mounting & Compatibility:

• Fits standard 96mm zero point base plates, including Lang, Jergens, and 5th Axis systems.
• Accepts standard pull studs (sold separately) for secure mounting.

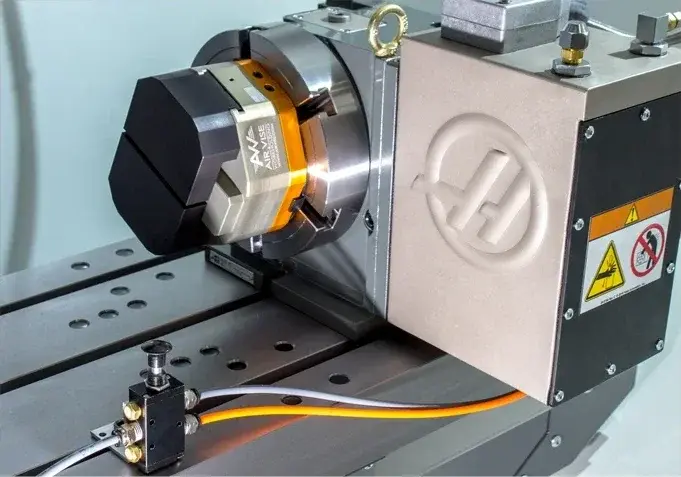

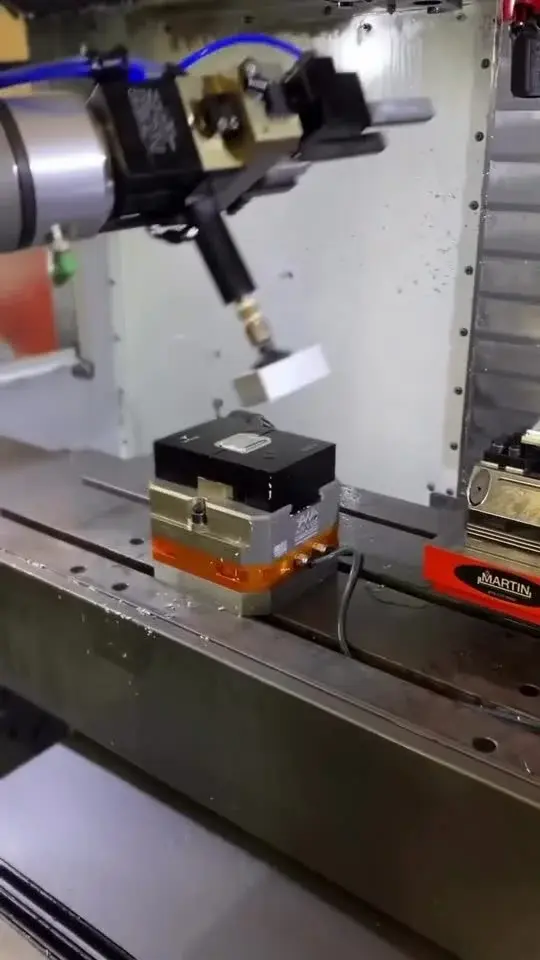

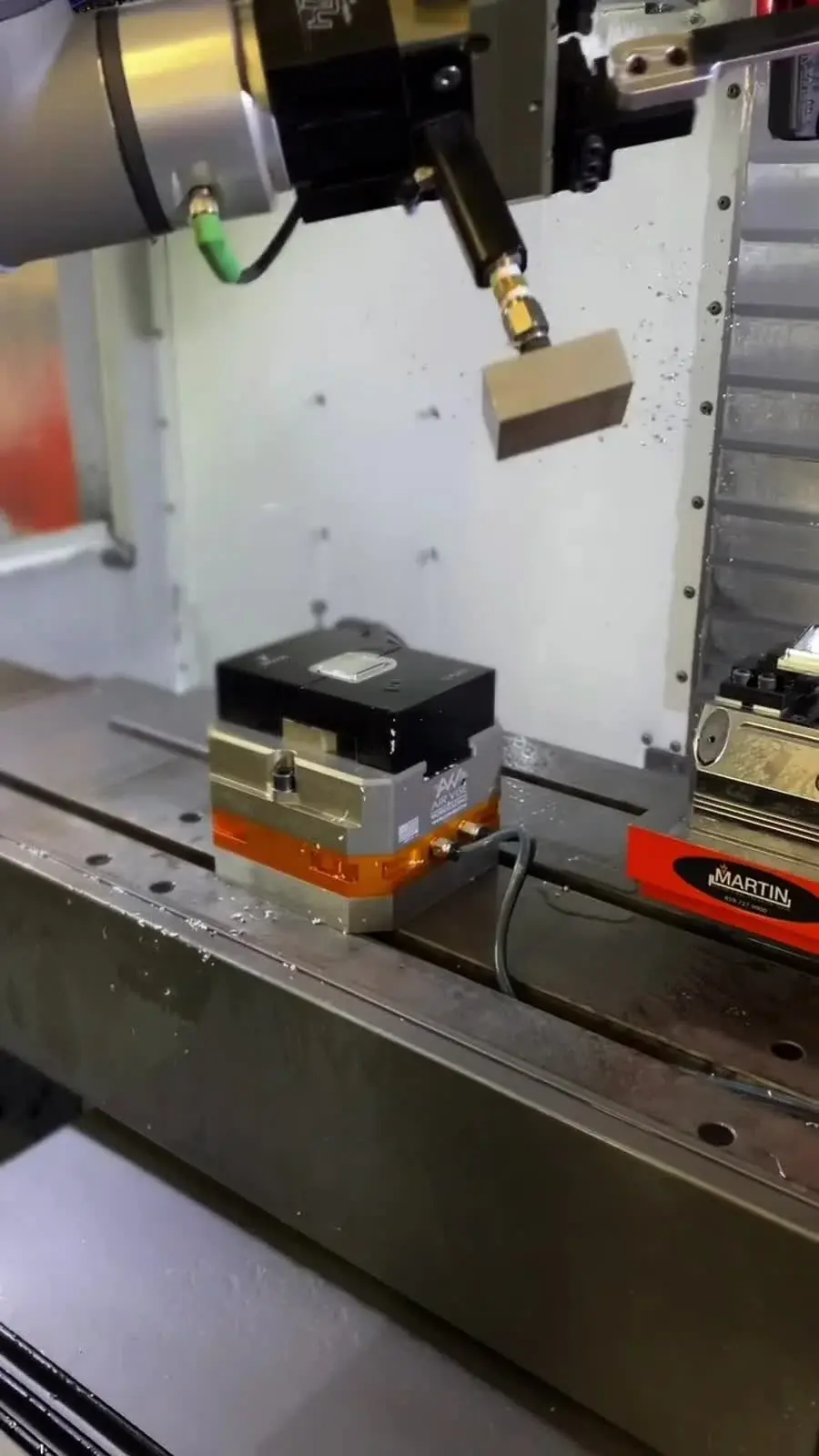

• Configured for direct integration with CNC milling machines, robotic tending stations, and other automated production environments.

Included & Optional Accessories:

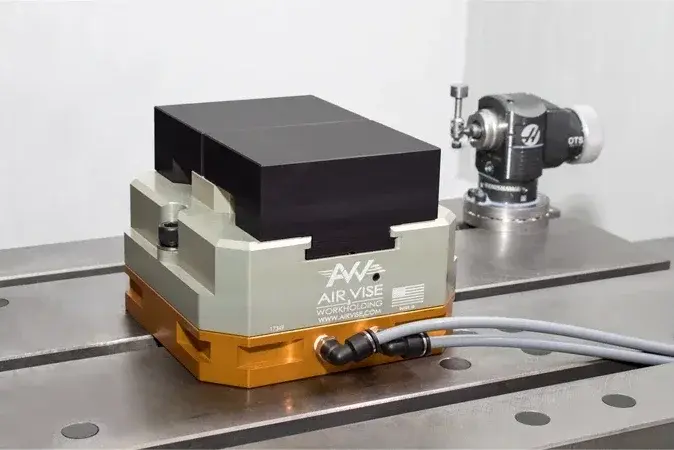

• Supplied with workholding hardware set, fixture keys, jaw shim, and pneumatic fittings.

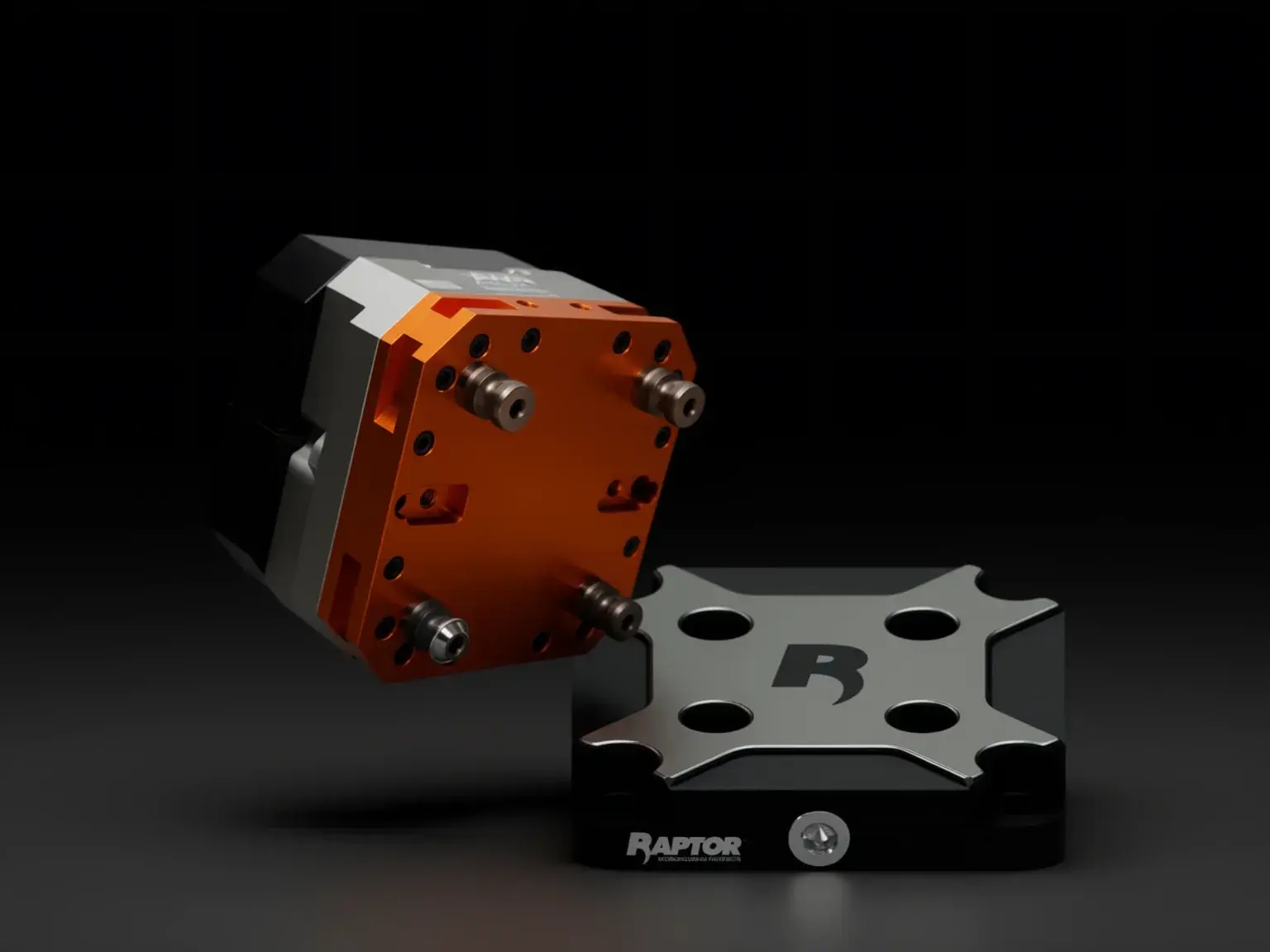

• Raptor plates and pull studs are required for mounting but sold separately, making them essential for full operational compatibility.

Compared to standard vises, the Air Vise Table Vise, 96mm Zero Point, 6 inch significantly reduces setup time by enabling tool-free jaw changes and faster cycle transitions in CNC automation workholding.
